Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size

Brand Name : Ke Fei Te

Model Number : YC

Certification : CCC,ISO9001

Place of Origin : Chongqing, China

MOQ : 500 meters

Price : $0.20-1.80/meters

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 4-12DAYS

Packaging Details : wooden drum,wooden pallet,woven bag,plastic pallet

Insulation Material : EPR

Type : Flexible cable

Application : A variety of complex and harsh electrical usage environments

Conductor Material : stranded copper conductor

Jacket : Rubber

Size : 1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm ,70mm 95mm ,120mm and so on

Product Name : H07RN-F Rubber cable

Shape : round wire

Feature : flexible,movable, oil resistance ,wear resistance ,tensile resistance and so on

Conductor : Stranded Copper Wire Conductor

Sheath : Rubber Sheath

Rated voltage : 450/750V

Core : Single Core,2cores,3cores,3+1cores and so on

Filler : Tensile Resistance Rope

Contact Now

Wear Resistance Rubber Sheathed Flexible Cable with Stranded Copper Conductor for Complex and Harsh Electrical Usage Environments
Extra Soft Wear Resistance Outdoor Use Rubber Flexible Power Cable with EPR Insulation and Stranded Copper Conductor. Customizable Size Rubber Sheath EPR Insulation Stranded Copper Conductor Flexible Power Cable for demanding electrical environments. 450/750V H07RN-F Heavy Duty Rubber Flexible Cable with EPR Insulation and Stranded Copper Conductor.
This multi-core power supply cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness, wear resistance and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.

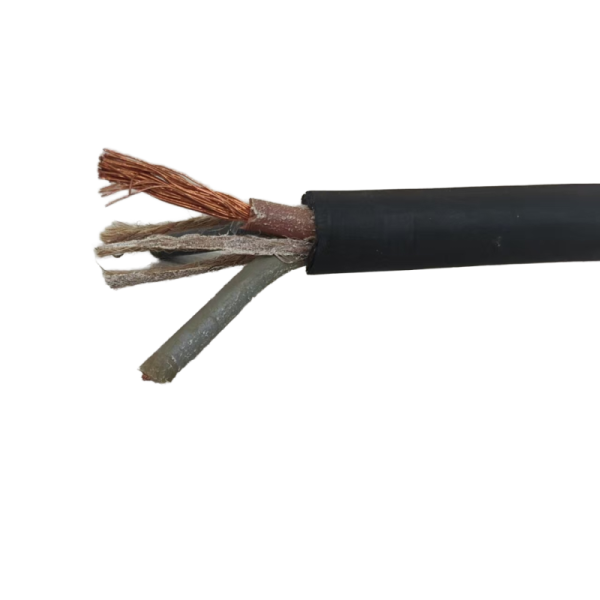

Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size

Product Specifications
  • Conductor: A copper conductor made by twisting multiple thin copper wires together
  • Insulation: EPR (Ethylene Propylene Rubber)
  • Sheath: CPE
  • Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
  • Voltage Rating: 450/750V
  • Temperature Range: -30°C to +70°C (90℃ max)
  • Size: 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm ,150mm and more
  • Filler: Tensile Resistance Rope
  • Special Features: Movable, Flexible, oil resistance, wear resistance, small bending radius, tensile resistance,Resistant to mechanical damage
Applications
This Flexible rubber cable benefits from core advantages such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and good flexibility. It can be adapted to various complex and harsh electrical environments.
  • Power supply for heavy mechanical equipment
  • Mining equipment
  • Power supply for construction equipment
  • Temporary power supply system
  • Temporary outdoor work
  • Emergency rescue power supply

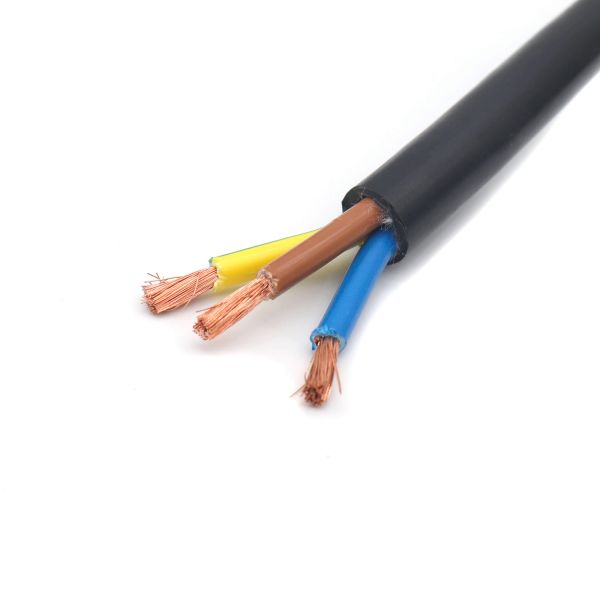

Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size

Technical Characteristics
Temperature Rating
  • Fixed: -30°C to +60°C
  • Fixed protected installations: +85°C
  • Flexed: -15°C to +60°C
  • Insulation tested to +90°C
Minimum Bending Radius
  • Fixed: 4 x overall diameter
  • Flexed: 6 x overall diameter
Product Specifications
Product NameH07RN-F Rubber cable
BrandKe Fei Te
ModelYC
Conductor MaterialAnnealed copper conductor
Insulation MaterialEPR
JacketGeneral Rubber Sheath
ColorBlack
ShapeRound wire
FeatureFlexible, oil resistance,wear resistance, Inflaming retarding, soft and tensile resistance
Company Profile
Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.
Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.
Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
Production Equipment
Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size
Exhibition
Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size
Certification
Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size
Packing & Delivery
Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size Extra Soft Rubber Flexible Cable Rubber Outdoor Cable 1mm To 150mm Size
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
